Product Features

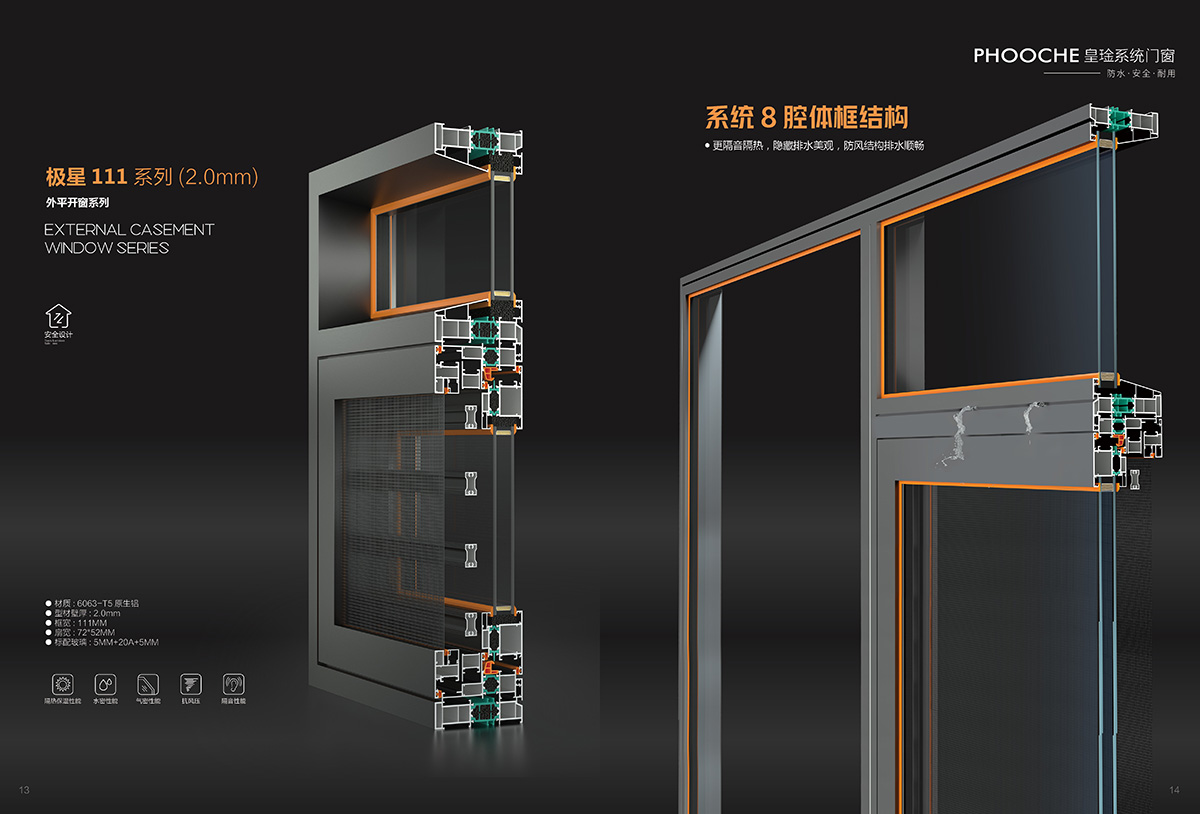

● The window frame is designed with a vertical isothermal line for the 8 cavities, providing better sound and heat insulation.

● Hidden windproof and drainage design, smooth drainage, neat appearance and beautiful lines.

● German style frame splicing technology ensures frame strength, improves sealing and waterproof performance, and is equipped with a system injection molding process. It includes professional expansion guide injection molding ● corner codes, professional two-component glue injection, and full glue testing. The standard section is coated with anti-seepage adhesive, and the center column is filled with self leveling sealant. The entire frame is waterproof and does not seep into the wall or indoors.

● Comes standard with a full set of high-quality 304 stainless steel hardware.

● Design an optional opening protective barrier, with the yarn fan hinge opening 165 degrees.

● Outdoor fixed glass without glue, using native EPDM composite foam sealing strips, which are not easy to age or shrink after long-term use. The air chamber type is more soundproof, absorbent and waterproof, and more sealed;

● 3C certified Xinyi original glass, safety tempered glass, specifications 5MM+20AMM+5MM, integrated bent aluminum strip filled with durable molecular sieve to prevent fogging and mold growth, sound insulation, heat insulation, anti freezing, beautiful, atmospheric, energy-saving and environmentally friendly.

● Internal and external flat frames, beveled or curved lines are more elegant and beautiful. The whole frame is connected to the water blocking edge, beautiful and waterproof. The circular protective angle inside the gauze fan is safer.

● Optional three sealed native sealing strips, strong air tightness and sound insulation, unique hidden

Hidden drainage and 6 waterproof processes, high standard windproof system, truly achieving the function of windows

Waterproof sealing system window;

● Adopting the system standard broadband reinforcement rib inspection qualified reinforced PA66GF25 nylon insulation strip, it provides better sound insulation, good weather resistance, and is not easily aged or deformed.
